Quality software that keeps drawings, inspections, and proof of compliance in one flow
GaugeFlow turns blueprint requirements into connected inspections, traceability, cert packets, and audit-ready records without spreadsheet sprawl.
Drawing Preview
REV CInspection Results
| # | Feature | Nominal | Tol | Actual | Status |
|---|---|---|---|---|---|
| 1 | OD - Flange | 6.000" | ±0.005 | 6.002" | Pass |
| 2 | Bore ID | 2.500" | ±0.002 | 2.501" | Pass |
| 3 | Bolt Hole Dia | 0.375" | ±0.003 | 0.374" | Pass |
| 4 | Thickness | 1.750" | ±0.005 | — | Pending |
| 5 | Surface Finish | 32 Ra | Max | 28 Ra | Pass |
Part Details
Traceability
Calibration
One operating system for the quality chain
GaugeFlow is designed for the real handoff points that slow down manufacturing teams: engineering to quality, first article to production, and shipment to audit follow-up.
Control the source
Keep drawings, revisions, balloons, and characteristics in one controlled system.
Run the work
Move from first article to in-process and final inspection without re-keying the same data.
Ship with proof
Generate traceable customer packets and audit-ready records from the same quality data.

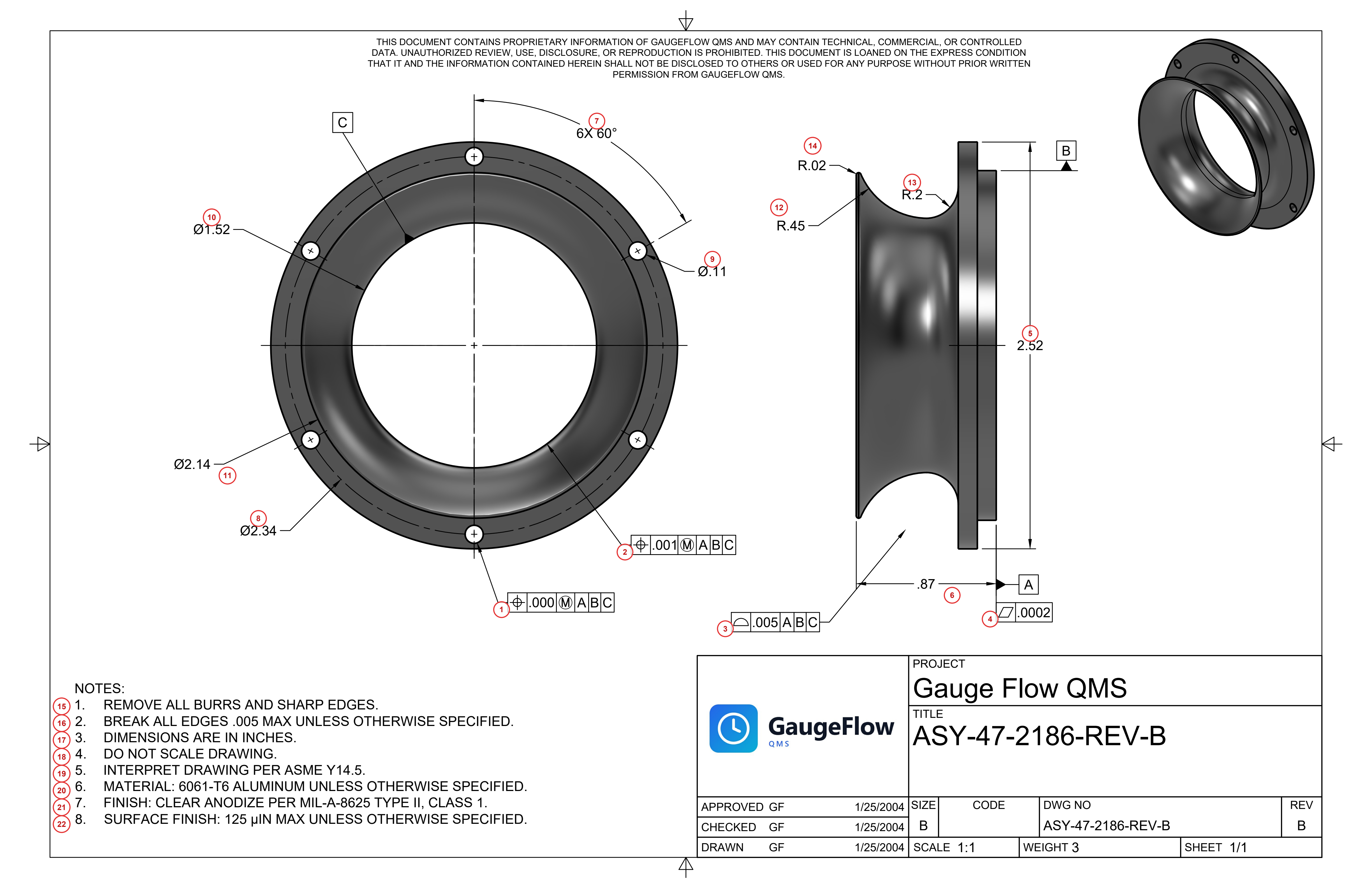

Blueprint ballooning connected to inspection
Click any balloon on the drawing to see how GaugeFlow turns blueprint dimensions into traceable inspection steps automatically.
Built for how quality teams actually work
Real inspection forms, real document control, and no generic workflow theater.
Inspection Workflow
| Char # | Feature Name | Nominal | +Tol | −Tol | Actual | Instrument | Status |
|---|---|---|---|---|---|---|---|
| 1 | Outside Diameter | 2.5000 | +0.001 | −0.001 | 2.5004 | CMM-003 | Pass |
| 2 | Inside Diameter | 1.7500 | +0.002 | −0.002 | 1.7488 | CMM-003 | Fail |
| 3 | Overall Length | 4.2500 | +0.005 | −0.005 | 4.2517 | Micrometer-12 | Pass |
| 4 | Thread Depth | 0.1250 | +0.001 | −0.001 | 0.1253 | Thread Gauge-7 | Pass |
| 5 | Surface Finish Ra | 32 | +8 | −0 | 28 | Profilometer-2 | Pass |
| 6 | Concentricity | 0.0000 | +0.003 | −0.000 | 0.0021 | CMM-003 | Pass |
| 7 | Bore Diameter | 0.8750 | +0.001 | −0.001 | — | — | Pending |
Document Control
| Document | Rev | Status | Owner | Last Modified | |
|---|---|---|---|---|---|
QMS-001Quality Manual | D | Current | J. Torres | 2024-11-08 | |
WI-010Inspection Procedure — Dimensional | B | Current | M. Chen | 2024-10-22 | |
WI-011Inspection Procedure — Surface Finish | C | Under Review | M. Chen | 2024-12-01 | |
SOP-004Nonconforming Material Control | A | Current | R. Patel | 2024-09-15 | |
FRM-020First Article Inspection Checklist | E | Current | K. Novak | 2024-11-30 | |
WI-015Gauge Calibration Procedure | A | Draft | L. Adams | 2024-12-03 |
First Article Inspection done right
Walk through the complete AS9102 workflow and see how GaugeFlow handles part accountability, material documents, and characteristic measurements in one place.
Every record connected
Follow the relationship between the drawing, the material cert, the inspection results, and the final conformance paperwork.
Need ERP for the shop side too?
GaugeFlow QMS handles quality, inspections, documents, and compliance. If you also want the business system for quoting, orders, purchasing, jobs, and inventory, take a look at our GaugeFlow ERP software.
Quoting and sales orders
Jobs, purchasing, and inventory
Shop visibility from quote to cash
A practical way to get your team live
Start with one real part, one real inspection flow, and one real proof packet. Then expand from a process your team already trusts.
Map the current process
Start with the drawings, certs, and inspections that create the most friction today.
Load one real part
Use an actual job, balloon the print, and build the connected inspection flow your team will run.
Pilot and expand
Validate the workflow with your team, then roll it out across more parts, cells, or departments.
Common questions
Who is GaugeFlow QMS built for?
Can it replace spreadsheets and paper systems?
Does it support FAI and AS9102?
Can it be deployed on-premise?
Try GaugeFlow QMS before you buy
Open the real hosted sample workspace, click through the workflow, and see how blueprints, inspections, FAI, documents, calibration, and traceability connect.
Prefer email? Reach us at sales@gaugeflowqms.com.
